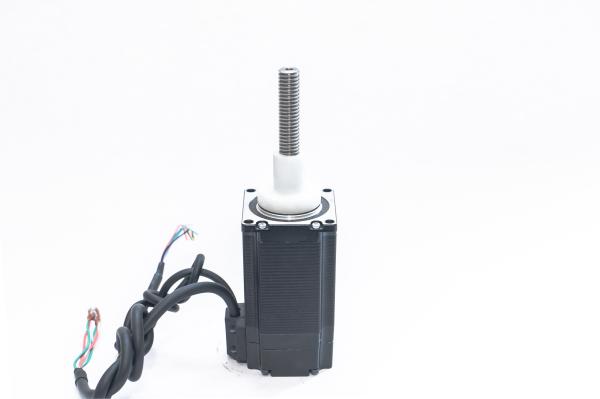

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor

Ask Lasest Price
Model Number :	57mm Linear Stepper Motor
Certification :	40
Brand Name :	Hontru
Price :	Negotiation
Delivery Time :	5-10 working days
Payment Terms :	T/T, PayPal, Western Union
Supply Ability :	10000pcs/month

Add to Cart

Product Details
Company Profile

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor

57mm Linear Stepper Motor

Phase number	2
Step angle accuracy IP rating	±5%
Certification	40
Insulation level	RoHS CE ISO9001 B(130℃)
Operating ambient temperature	-20℃~ +50℃

Motor parameters

Motor Type	Body L(mm)	Holding torque(N.m)	Rated current(A)	Resistance(Ω)	Rated inductance(mH)	Rated voltage(V)
57	45mm	0.7	3A	0.75Ω	0.72mH	2.25V


	55mm	0.9	3A	0.92Ω	4.5mH 3.3mH	2.76V
	65mm	1.5	4A	0.78Ω		3.12V
	75mm	1.8	4A	0.95Ω	4.5mH	3.8V
	84mm(except through)	2.2	4A	0.97Ω	7mH	3.88V
	100mm(except through)	2.5	5A	0.7Ω	3.2mH	3.5V

Screw parameters :

diameter(mm)	Screw diameter(inch)	Lead(mm)	Lead(inch)	Step Length 1.8°(°)	Nut axial clearance
9.525	0.375	0.635	0.025	0.003175	0.02-0.03mm
9.525	0.375	1.27	0.05	0.00635	0.02-0.03mm
9.525	0.375	1.5875	0.0625	0.0079375	0.02-0.03mm
9.525	0.375	2.1167	0.083	0.0105835	0.02-0.03mm
9.525	0.375	2.54	0.1	0.0127	0.02-0.03mm
9.525	0.375	3.175	0.125	0.015875	0.02-0.03mm
9.525	0.375	4.232	0.167	0.02116	0.02-0.03mm
9.525	0.375	5.08	0.2	0.0254	0.02-0.03mm
9.525	0.375	6.35	0.25	0.03175	0.02-0.03mm
9.525	0.375	9.525	0.375	0.047625	0.02-0.03mm
9.525	0.375	10.16	0.4	0.0508	0.02-0.03mm
9.525	0.375	12.7	0.5	0.0635	0.02-0.03mm
9.525	0.375	25.4	1	0.127	0.02-0.03mm
6.35	0.25	25.4	1	0.127	0.02-0.03mm

Dimensions

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor

Screw Type

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor

Dynamic thrust curve

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor
