1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor

Product Categories

6 Slots [4]
12 Slots [3]
42mm Round Brushless Motor [3]
57mm Square Brushless Motor [16]
57mm Stepper Motor [4]
86mm Stepper Motor [4]
42mm Stepper Motor [5]
57mm Round Brushless Motor [7]
60mm Square Brushless Motor [7]
86mm Square Brushless Motor [4]
110mm Square Brushless Motor [5]
42mm Brushless Brake Reducer [4]
57mm Round Brushless Reduction Motor [6]
60mm Square Reduction Motor [4]
60mm Brushless Brake Motor [4]
90mm Reduction Motor [5]
28mm Linear Motor [6]
35mm Linear Motor [5]
42mm Linear Motor [5]
57mm Linear Motor [7]
86mm Linear Motor [9]

changzhou hontru motor co.ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Buy cheap 1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor from wholesalers

Buy cheap 1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor from wholesalers

1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor

Ask Lasest Price
Model Number :	35mm Linear Motor
Certification :	40
Brand Name :	Hontru
Price :	Negotiation
Delivery Time :	5-10 working days
Payment Terms :	T/T, PayPal, Western Union
Supply Ability :	10000pcs/month

Add to Cart

Product Details
Company Profile

1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor

35mm Linear Stepper Motor

Phase number	2
Step angle accuracy IP rating	±5%
Certification	40
Insulation level	RoHS CE ISO9001 B(130℃)
Operating ambient temperature	-20℃~ +50℃

Motor parameters

Motor Type	Body L(mm)	Holding torque(N.m)	Rated current(A)	Resistance(Ω)	Rated inductance(mH)	Rated voltage(V)
42	34mm	0.25	1.5A	1.73Ω	2.6mH	2.595V


	40mm	0.4	1.5A	2.1Ω	4.8mH	3.15V
	48mm	0.5	1.5A	2.4Ω	5mH	3.6V
	60mm	0.7	2.5A	0.95Ω	2.8mH	2.375V
	80mm(Except through)	0.8	2.5A	1.3Ω	3.4mH	3.25V

Screw parameters :

diameter(mm)	Screw diameter(inch)	Lead(mm)	Lead(inch)	Step Length 1.8°(°)	Nut axial clearance
6.35	0.25	0.79375	0.0313	0.004	0.02-0.03mm
6.35	0.25	1	0.0394	0.005	0.02-0.03mm
6.35	0.25	1.5875	0.0625	0.0079	0.02-0.03mm
6.35	0.25	2	0.0787	0.01	0.02-0.03mm
6.35	0.25	2.4384	0.096	0.0122	0.02-0.03mm
6.35	0.25	2.54	0.1	0.0127	0.02-0.03mm
6.35	0.25	3	0.1181	0.015	0.02-0.03mm
6.35	0.25	3.175	0.125	0.0159	0.02-0.03mm
6.35	0.25	5.08	0.2	0.0254	0.02-0.03mm
6.35	0.25	6.35	0.25	0.0318	0.02-0.03mm
6.35	0.25	8.4582	0.333	0.0423	0.02-0.03mm
6.35	0.25	12.7	0.5	0.0635	0.02-0.03mm
6.35	0.25	25.4	1	0.127	0.02-0.03mm

Dimensions

1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor

Screw Type

1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor

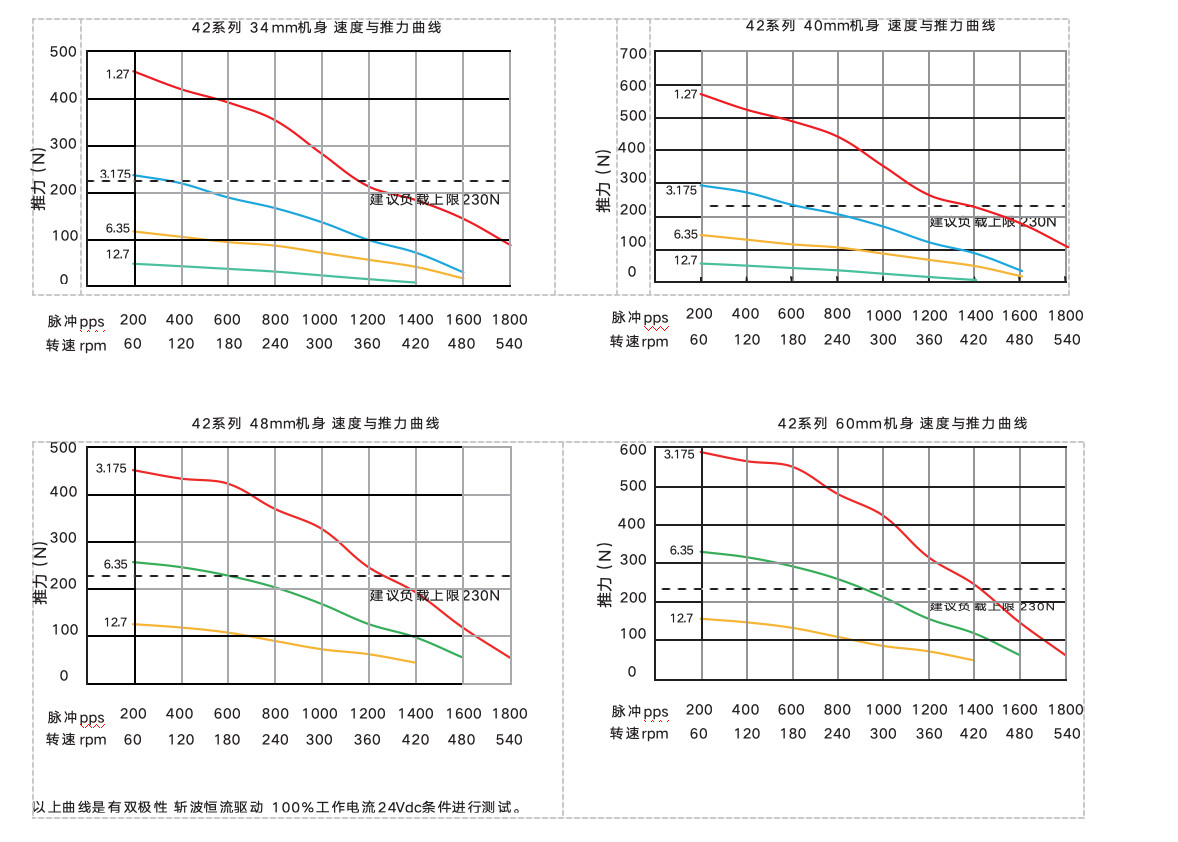

Dynamic thrust curve

1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor

Product Tags:

1.8 2 Phase Lead Screw Nema 17 Stepper Motor

42mm 7.2VDC Linear Hybrid Stepper Motor

42mm Diameter nema 17 Stepper Motor

Quality 1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor for sale

1.8 2 Phase NEMA 17 42mm Diameter 7.2VDC Hybrid Lead Screw Stepper Motor
