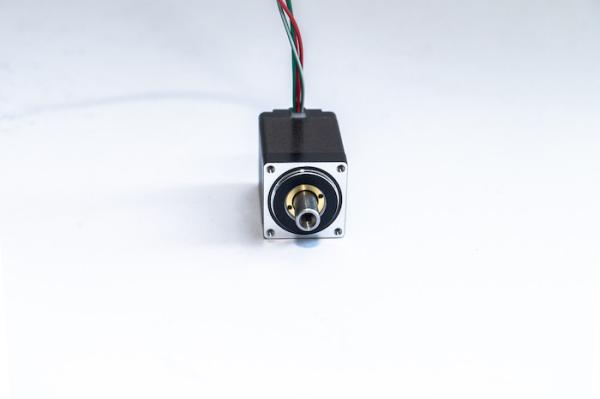

Permanent Magnet Non Captive Linear Stepper Motor For Linear Motion

Ask Lasest Price
Model Number :	HC86BLF
Brand Name :	Hontru
Certification :	40
Price :	Negotiation
Delivery Time :	5-10 working days
Payment Terms :	T/T, PayPal, Western Union
Supply Ability :	10000pcs/month

Add to Cart

Product Details
Company Profile

Permanent Magnet Non Captive Linear Stepper Motor For Linear Motion

28mm Linear Stepper Motor

Phase number	2
Step angle accuracy IP rating	±5%
Certification	40
Insulation level	RoHS CE ISO9001 B(130℃)
Operating ambient temperature	-20℃~ +50℃

Motor parameters

Motor Type	Body L(mm)	Holding torque(N.m)	Rated current(A)	Resistance(Ω)	Rated inductance(mH)	Rated voltage(V)
28	34mm	0.06	1A	2.1Ω	1.4mH	2.1V
	45mm	0.12	1A	3Ω	2.2mH	3V
	51mm	0.18	1A	3.5Ω	3mH	3.5V

Screw parameters :

diameter(mm)	Screw diameter(inch)	Lead(mm)	Lead(inch)	Step Length 1.8°(°)	Nut axial clearance
4.77	0.188	4.76 * 0.635	0.025	0.003175	0.02-0.03mm
4.77	0.188	4.76 * 1.27	0.05	0.00635	0.02-0.03mm
4.77	0.188	4.76 * 2.54	0.1	0.0127	0.02-0.03mm
4.77	0.188	4.76 * 5.08	0.2	0.0254	0.02-0.03mm
4.77	0.188	4.76*10.16	0.4	0.0508	0.02-0.03mm

Dimensions

Permanent Magnet Non Captive Linear Stepper Motor For Linear Motion

Screw Type

Permanent Magnet Non Captive Linear Stepper Motor For Linear Motion

Dynamic thrust curve
